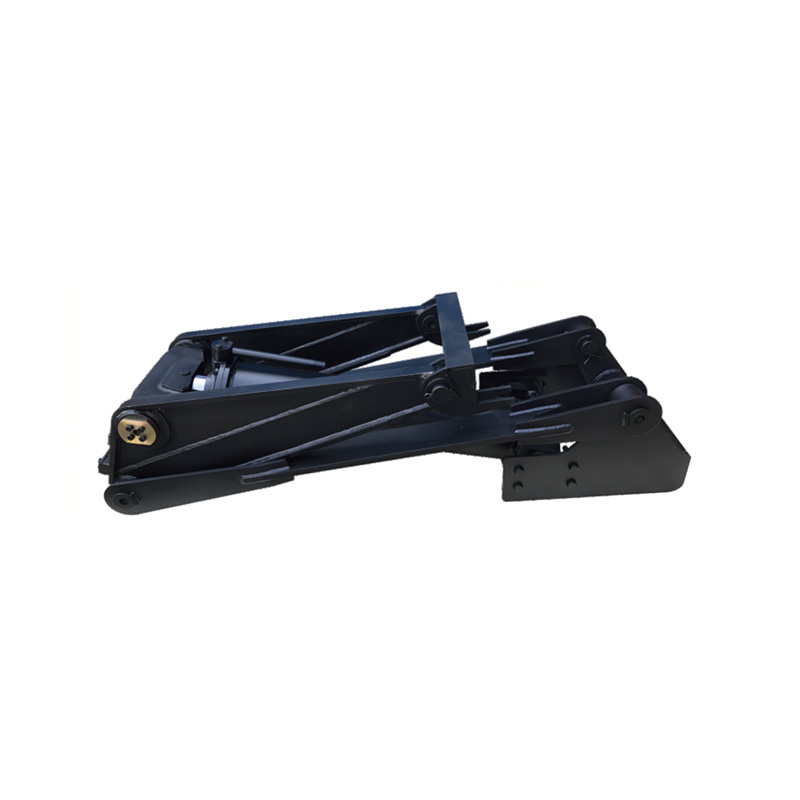

KRM-180 Hydraulic Hoist

The KRM-180 Hydraulic Hoist is a robust and versatile hydraulic mechanism designed to handle heavy-duty lifting operations efficiently. With a streamlined design and premium-quality components, it integrates seamlessly into trucks with a gross vehicle weight (GVW) ranging from 21,000 kg to 29,000 kg. Its reliable performance makes it a practical choice for various industries such as logistics, construction, and waste management.

Product Advantages
1. Efficient Hydraulic System
   - The hoist operates with a working pressure of 11.8 MPa (120 kgf/cm²), ensuring smooth and controlled lifting for heavy loads.
   - Integrated with the KP-1403A hydraulic pump, it provides a discharge volume of 136 ml/rev, optimizing the hydraulic output for consistent performance.

2. Strong and Durable Structure
   - Made with a reinforced framework, the KRM-180 offers exceptional durability, handling challenging lifting tasks while maintaining structural integrity.
   - The hoist features components such as a hydraulic hose, oil pipe connection, and high-precision drive shaft to enhance longevity and reliability.

3. Compact and Versatile Design
   - With dimensions of 1665 mm in length, 545 mm in width, and 518 mm in height, it is compact enough for easy integration into a variety of truck models.
   - The unit's minimal close length of 1175 mm ensures that it remains efficient in compact spaces, making it suitable for diverse operational needs.

Product Features

1. Hydraulic Cylinder Specifications
   - High-Performance Stroke: With a stroke length of 752 mm, the cylinder ensures sufficient reach for versatile lifting applications.
   - Optimized Piston Dimensions: The inner diameter of 180 mm and a piston rod diameter of 80 mm provide optimal strength and stability during operations.
   - Retracted Length: The cylinder's retracted length (eye-to-eye) is 1108 mm, ensuring a compact and efficient form factor.

2. Pump and Pressure Features
   - Standard Revolutions: Operating at 800 rpm, the hydraulic pump achieves consistent flow and efficiency.
   - Maximum Testing Pressure: Tested up to 20.8 MPa (210 kgf/cm²), the hoist can handle demanding operational requirements while maintaining safety margins.

3. Mounting and Capacity
   - Recommended Truck Specifications: Compatible with trucks featuring rear overhangs between 1500-1700 mm and trunnion distances of 2130-2370 mm, ensuring easy compatibility.
   - Lifting Capacity: With a rated lifting capacity of 15,000-20,000 kg, the KRM-180 is suitable for heavy-duty applications. It also boasts a designed maximum lifting capacity of 40,700 kg, highlighting its exceptional load-handling capabilities.

4. Ease of Installation and Maintenance
   - The inclusion of parts such as 42x60 hinge pin shafts, body hinges, and a compact oil reservoir simplifies both installation and servicing.
   - Modular components, including levers and drive shafts, make replacements and upgrades straightforward.

Applications
The KRM-180 Hydraulic Hoist is widely applied in industries requiring reliable lifting solutions:
- Construction: Used for material handling and on-site equipment transport.
- Waste Management: Ideal for loading and unloading heavy waste bins and containers.
- Logistics and Transportation: Enhances the efficiency of loading goods onto heavy trucks.
- Agriculture: Suitable for handling large agricultural loads such as grain or machinery.

The KRM-180 ensures reliability, precision, and versatility across a wide range of heavy-duty lifting needs. Its compact yet powerful design makes it a valuable addition to trucks in demanding environments.
