Diamond Printing Machine for Copperplate Engraving

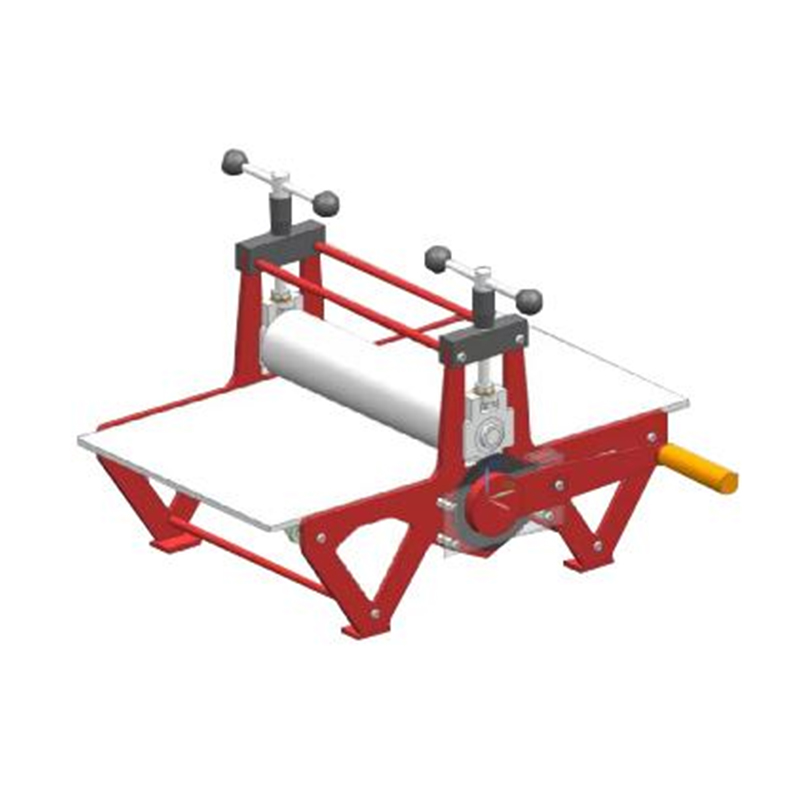

TB4276 Diamond Copperplate Machine

The TB4276 Diamond Copperplate Machine is a precision copperplate printing machine designed for high-quality print production. By using a solid rack and pinion drive instead of a basic friction roller, it keeps the bed movement completely steady and stops the plate from jerking mid-pull, which gives you highly consistent pressure across the sheet. We welded the whole frame out of thick steel so it can take continuous daily use without flexing or throwing your alignment out of whack over time. The design also packs in some common-sense safety stops and handy features that speed up your daily printing routine and make running the machine a lot less of a headache.

Contact Now

Product Advantages

1. Smooth Operation and Precision

The rack and pinion drive handles the actual movement of the copperplate, keeping the glide completely steady. Because the gears mesh directly, you don't get that annoying mechanical chatter or noise. It makes feeding the plates feel effortless, which speeds up your whole print run.

2. Built to Be Pushed Hard

With a solid steel body, the TB4276 Diamond model isn't some flimsy piece of studio gear. It takes heavy, continuous cycles without warping or throwing your alignment out of whack, giving you a long-lasting press that survives everyday workshop use.

3. Common-Sense Safety Upgrades

We added a built-in fall-prevention stop bar to the design. If someone makes an awkward mistake or loses their grip mid-operation, the bar catches the heavy steel plate automatically. It saves the equipment from getting smashed up and keeps your hands safe.

Product Features

1. Reliable, Level Pressure

This press is built to squeeze down evenly across the entire surface of the copperplate. You don't have to constantly worry about lighter patches or uneven ink distribution, meaning your transfers stay consistent from one sheet to the next without a bunch of misprints.

2. Built-In Magnetic Tool Holders

There is a handy magnetic strip setup built right into the machine's housing. Instead of letting your scrapers, needles, or wrenches clutter up your immediate workspace or roll onto the floor, you can just slap them onto the frame so they are right where you need them.

3. A Few Colors to Choose From

To help it match your current workshop setup, we offer the TB4276 in several different color options. It lets you customize the look a bit so the machine blends into your studio space or matches the rest of your heavy equipment.

4. User-Friendly Setup and Upkeep

The layout makes sense and feels comfortable to work with, meaning you don't have to strain your arms when dialing in adjustments. The wheels and controls are intuitive enough that a new person in the studio can get the hang of it without a steep learning curve. We also made sure the parts are easy to reach instead of hiding them behind sealed panels, so you can handle quick cleanups, wipe down ink, or service the moving components without a massive headache.

Product Parameter
Model	Diamond TB-4276Y	Slab copper plate machine TM4276Y
Table Material	Aluminium plate	Aluminium plate
Printing width(cm)	42*76	42*76
Machine size(cm)	765450.8(width excl).	765442.5(width excl.
Rack and pinion drive	No	No
Weight(without base)	62kg	62kg
Colour	Optional: black, white, red

The warranty period for the print machine is three years, and the warranty condition is that the equipment failure is not caused by human factors. If it is damaged by human factors, the cost of replacing the parts and the travel expenses for on-site repair will be charged.
